هوت اير احترافي كويك - QUICK857DW+

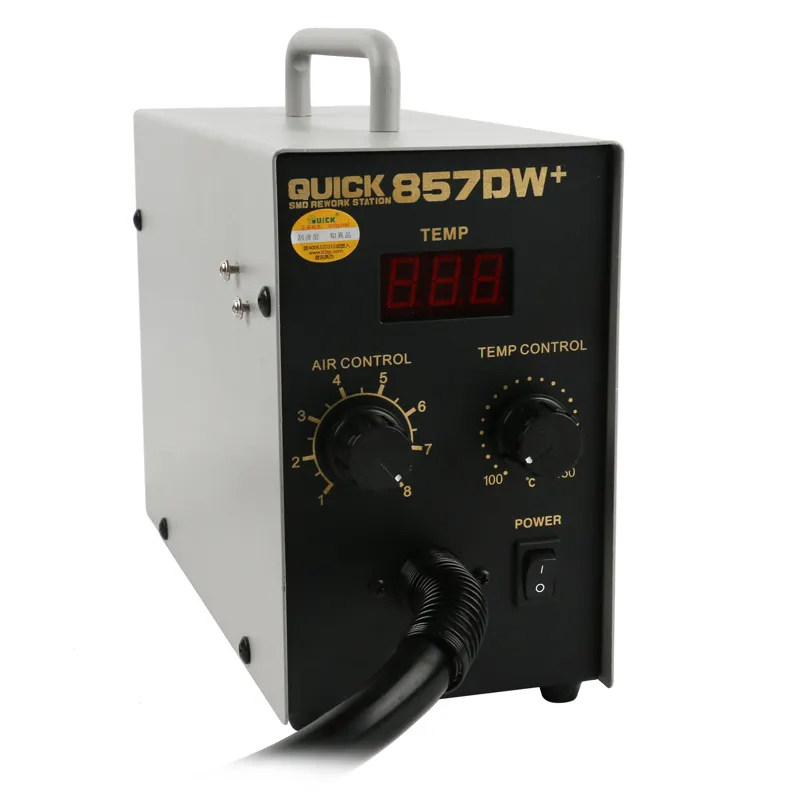

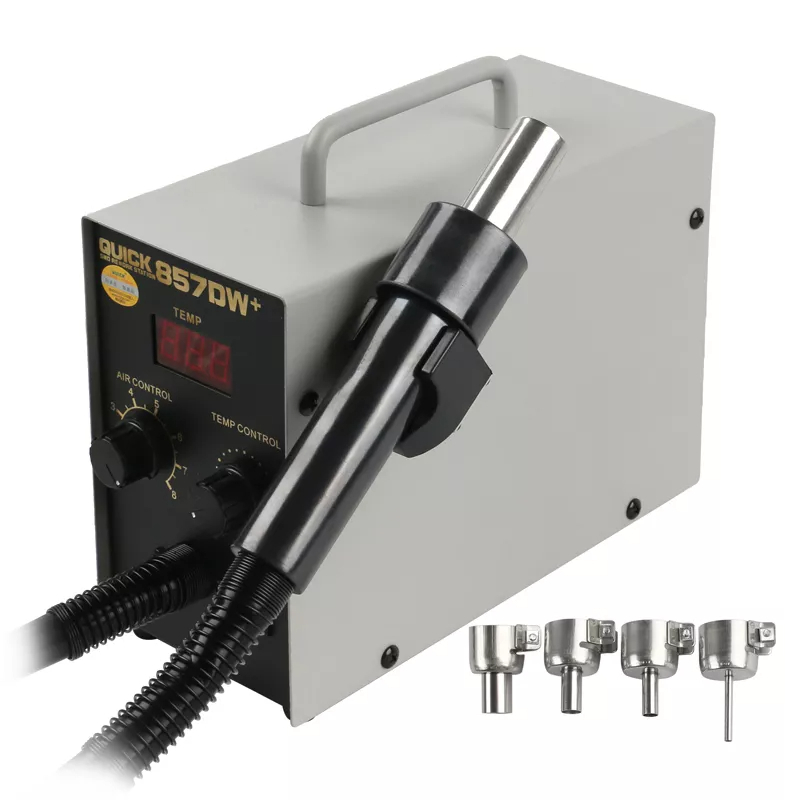

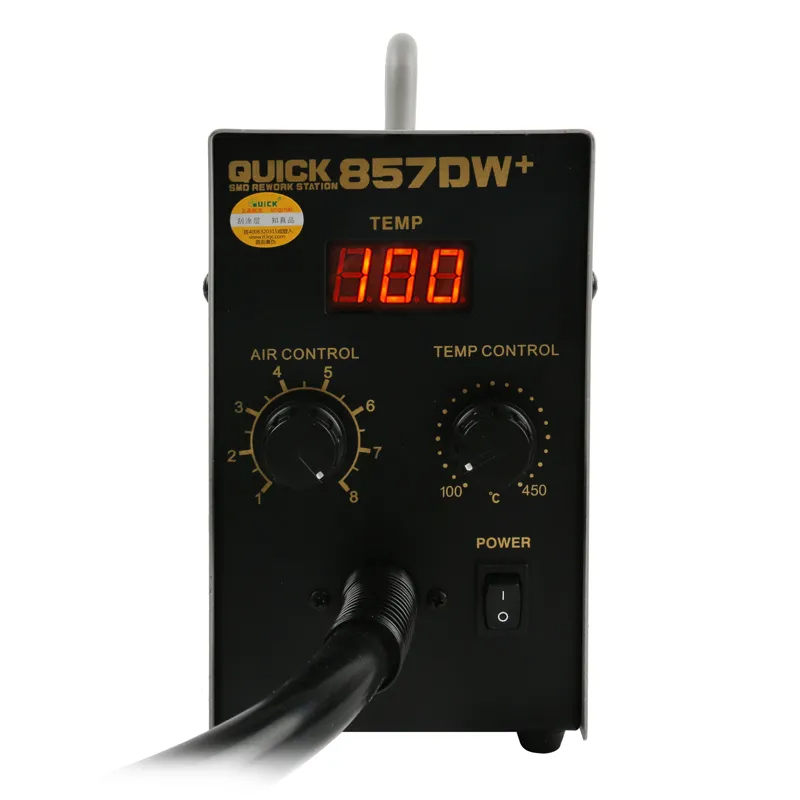

QUICK 857DW

Features:

 Closed loop sensor:

Temperature can be controlled by zero volage triggering mode.

Large power and rapid heating:

Temperature can be conveniently adjusted and the temperature is accurate and stabe, and not affected by airflow.

 Stepless airflow adjusting with wide range:

Temperature can be conveniently adjusted.

Sensitive electromagnetic inductor in handle:

Ensures the unit beginning working immediately so long as the handle is held.when handle is put on the holder, the system will return back to standby mode. easy to use.

 Automatic cooling system:

Can increase the life of heating element and protect the unit.

Compact unit takes up little space on the workbench.

 Application:

Fits most of SMD,SUCH SOIC,CHIP,QFP,PLCC,BAG ETC.

It is fuitable to hot shrink, drying, remove lacquer and mucosity, thaw, preheating, disinfect and so on.

Specification:

Power consumption: 580W with four round air nozzles

Pump: DC motor, twin-turbo rotate out of the wind.

Temperature adjustment: 100-480℃

Gas flow: 100 l / min

Nozzle Diameter: 3mm 6mm 8mm 12mm

Mobile components Length: 110CM

Dimensions: 17CM (H) x 10.5 (W) x 24CM (D)

Weight: 2400g

Noise: less than 78db

Voltage: 220V

Characteristics:

closed loop sensor: temperature can be controlled by zero volage triggering mode.

large power and rapid heating: temperature can be conveniently adjusted and the temperature is accurate and stabe, and not affected by airflow.

stepless airflow adjusting with wide range:temperature can be conveniently adjusted.

sensitive electromagnetic inductor in handle:ensures the unit beginning working immediately so long as the handle is held.when handle is put on the holder, the system will return back to standby mode. easy to use.

Automatic cooling system: can increase the life of heating element and protect the unit.

compact unit takes up little space on the workbench.

use&purpose:

fits most of SMD,SUCH SOIC,CHIP,QFP,PLCC,BAG ETC.

Heat shrinkage, drying, removal of paint and mucus, melting, preheating, disinfection, etc. are all suitable.

Technical Parameters:

Power consumption: 580W with four round air nozzles

Pump: DC motor, twin-turbo rotate out of the wind.

Temperature adjustment: 100 degrees --- 450 degrees

Gas flow: 100 l / min

Mobile components Length: 110CM

Dimensions: 17CM (H) * 10.5 (W) * 24CM (D)

Weight: 2400 g

Noise: less than 78 db
